What Is The Melting Point of Silver-Bearing Solder Wire? SnAgCu Lead-Free Solder Wire Composition And Price Analysis

Silver-bearing solder wire generally refers to lead-free solder alloys composed of tin, silver, and copper, commonly known as SnAgCu solder wire, SAC solder wire, or tin-silver-copper solder.

Different alloy compositions contain different percentages of silver and copper, and these differences affect melting temperature, wetting performance, solder joint reliability, process temperature, and material cost.

Common SnAgCu alloys include SAC305, Sn99Ag0.3Cu0.7, and SAC105, and their melting temperatures are generally within approximately 217°C to 227°C, depending on the exact alloy composition.

So, what is the melting point of silver-bearing solder wire?

The melting point is mainly determined by the alloy composition. In general, SnAgCu alloys with different silver and copper contents have different melting characteristics, different wetting behavior, and different process windows. Higher-silver SAC alloys usually provide good wetting and high solder-joint reliability, while low-silver alloys can reduce raw-material cost and may require somewhat different soldering parameters.

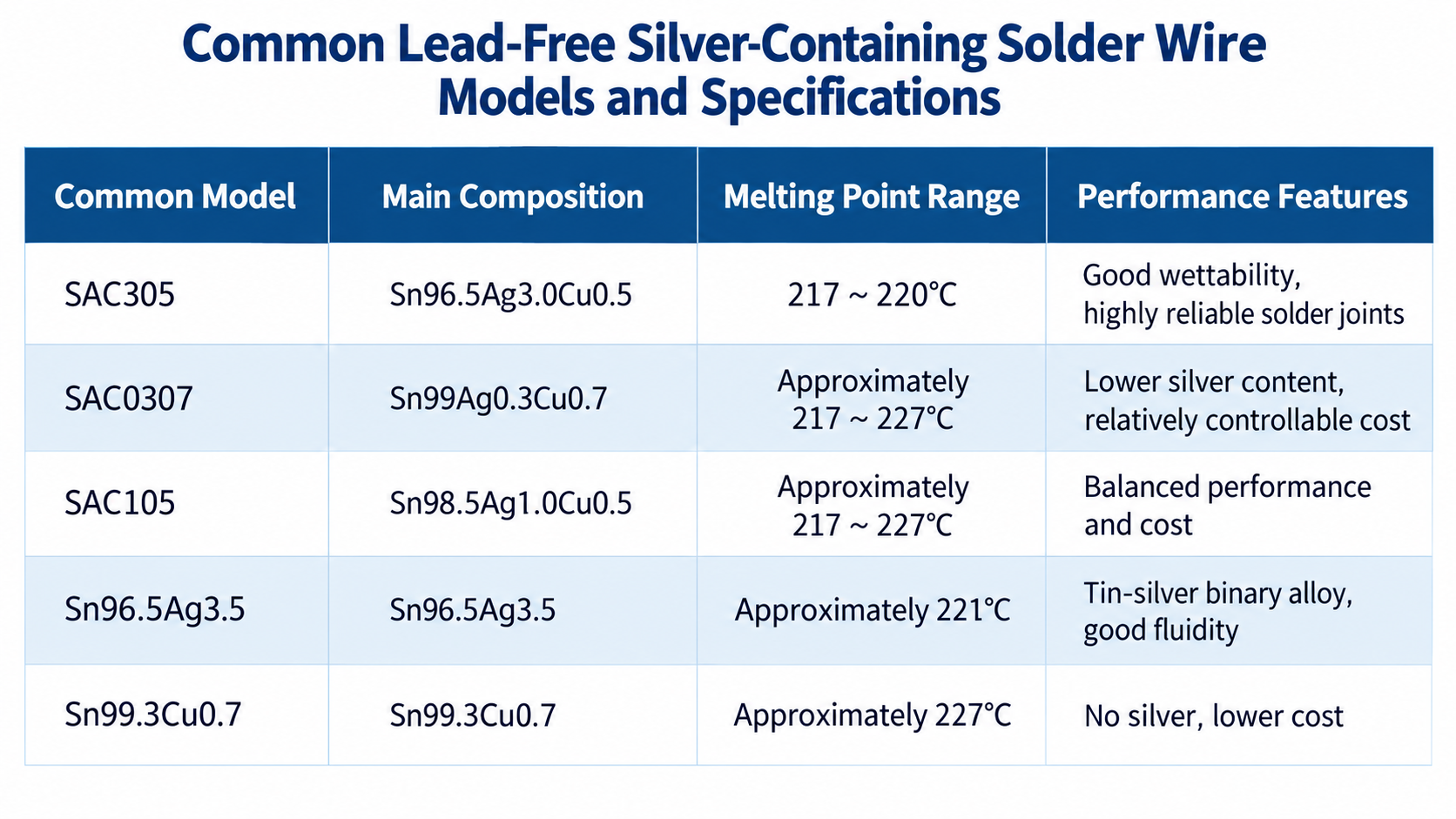

Composition and Melting Point of SnAgCu Lead-Free Silver-Bearing Solder Wire

Among commonly used lead-free silver-bearing solder wires, SAC305 is one of the most widely used alloys.

SAC305 has a melting range of approximately 217–220°C and is widely used in electronic products that require good solder joint strength, thermal-cycle resistance, and long-term reliability.

SnAg0.3Cu0.7 is a low-silver solder alloy. Compared with SAC305, it contains significantly less silver, its melting behavior and soldering characteristics are different, and actual process temperatures should be adjusted according to flux activity, solder wire diameter, soldering equipment, heating efficiency, and production conditions.

It is important to understand that the soldering iron temperature is not the same as the melting point of silver-bearing solder wire.

During manual soldering, the soldering iron is normally set above the alloy melting temperature so that the solder can melt quickly, transfer heat efficiently, and wet the soldering surface properly. However, an excessively high temperature may cause the flux to evaporate too quickly, increase oxidation, increase spattering, and negatively affect solder joint consistency.

What Is SnAgCu Solder Made Of?

SnAgCu solder is a lead-free solder alloy consisting mainly of three metallic elements: tin (Sn), silver (Ag), and copper (Cu).

Taking SAC305 as an example, its nominal composition is Sn96.5Ag3.0Cu0.5, which means approximately 96.5% tin, 3.0% silver, and 0.5% copper.

This type of tin-silver-copper solder provides good wetting performance, strong solder joints, and reliable performance under demanding operating conditions. It is widely used in automotive electronics, communication equipment, industrial control systems, power modules, PCB soldering, and other applications where long-term solder joint reliability is important.

SnAg0.3Cu0.7, on the other hand, contains approximately 99% tin, 0.3% silver, and 0.7% copper.

Compared with SAC305, its silver content is significantly lower, so the raw-material cost is generally easier to control. For this reason, SnAg0.3Cu0.7 lead-free solder wire is often considered for applications that require lead-free compliance, stable soldering performance, and better cost control.

Why Is Silver-Bearing Solder Wire More Expensive?

The price of silver-bearing solder wire is mainly affected by tin prices, silver prices, alloy composition, solder wire diameter, flux formulation, manufacturing requirements, packaging, and purchasing volume.

Silver is a precious metal, so silver content has a direct impact on raw-material cost.

Under similar manufacturing standards and purchasing conditions, SAC305 solder wire is generally more expensive than low-silver SnAg0.3Cu0.7 solder wire, while low-silver SnAgCu solder wire is generally more expensive than silver-free Sn99.3Cu0.7 tin-copper solder wire, although actual quotations will vary with metal prices and order specifications.

Therefore, buyers should not evaluate silver-bearing solder wire prices based on price per kilogram alone. Alloy composition, flux performance, wire consistency, soldering efficiency, defect rate, and long-term joint reliability should also be considered.

SAC305 or SnAg0.3Cu0.7: Which Alloy Should Be Selected?

When selecting silver-bearing solder wire, the first step is to determine the reliability requirements of the final product.

For automotive electronics, power modules, communication equipment, server control boards, industrial electronics, and high-reliability PCBs, SAC305 solder wire is commonly considered because it provides good wetting, strong solder joints, and good thermal-cycle reliability.

For products that are more cost-sensitive and have conventional soldering reliability requirements, SnAg0.3Cu0.7 low-silver solder wire can be considered. It reduces the amount of silver used, helps control material cost, and can still meet the needs of many lead-free soldering applications.

It can be used in selected consumer electronics, cables, connectors, circuit boards, and other general electronic assemblies, provided that the alloy and flux system match the actual production process and reliability requirements.

What Should Be Considered for Automatic and Manual Soldering?

For automatic soldering machines, buyers should pay particular attention to smooth solder feeding, uniform wire diameter, consistent flux distribution, stable melting behavior, and resistance to feeding-tube blockage.

A solder wire that varies significantly in diameter or has inconsistent internal flux distribution can affect feeding accuracy, solder volume, cycle consistency, and continuous production stability.

For manual soldering, the focus is somewhat different. Operators should consider wetting speed, smoke generation, spattering, solder flow, residue, and joint appearance.

Therefore, purchasing decisions should not be based only on a low silver-bearing solder wire price.

A cheaper solder wire may increase overall production costs if it causes slow wetting, insufficient soldering, cold joints, solder spikes, excessive spattering, unstable automatic feeding, higher rework rates, or increased production downtime.

For this reason, the appropriate SnAgCu lead-free silver-bearing solder wire should be selected according to alloy composition, melting point, flux formulation, soldering method, production efficiency, reliability requirements, and total manufacturing cost rather than price alone.
