What Is the Melting Point of Lead-Free Solder Wire?

What is the melting point of lead-free solder wire? This is a common concern among electronics manufacturers, welding engineers, and procurement personnel when selecting solder wire. In fact, the melting point of lead-free solder wire is not fixed—it varies significantly depending on the alloy composition. For instance, the typical Sn99.3Cu0.7 lead-free tin-copper solder wire melts at around 227°C, while Sn96.5Ag3.0Cu0.5 silver-containing lead-free solder melts at approximately 217°C. Some low-temperature lead-free solders can even melt at around 138°C.

The primary factor determining the melting point of lead-free solder wire is its alloy composition and ratio. Pure tin has a melting point of about 231.9°C. To achieve different melting temperatures, wetting properties, mechanical characteristics, and welding reliability, various metal elements such as copper, silver, bismuth, and antimony are added during solder production. When the alloy composition changes, the resulting solder's melting point also varies accordingly. Therefore, when purchasing environmentally friendly products like 0.8mm lead-free tin wire, 0.6mm eco-friendly tin wire, or Sn99.3 lead-free solder wire, it is essential to consider not only wire diameter and price but also select the appropriate alloy composition based on the product’s soldering temperature, component heat resistance, and specific welding processes.

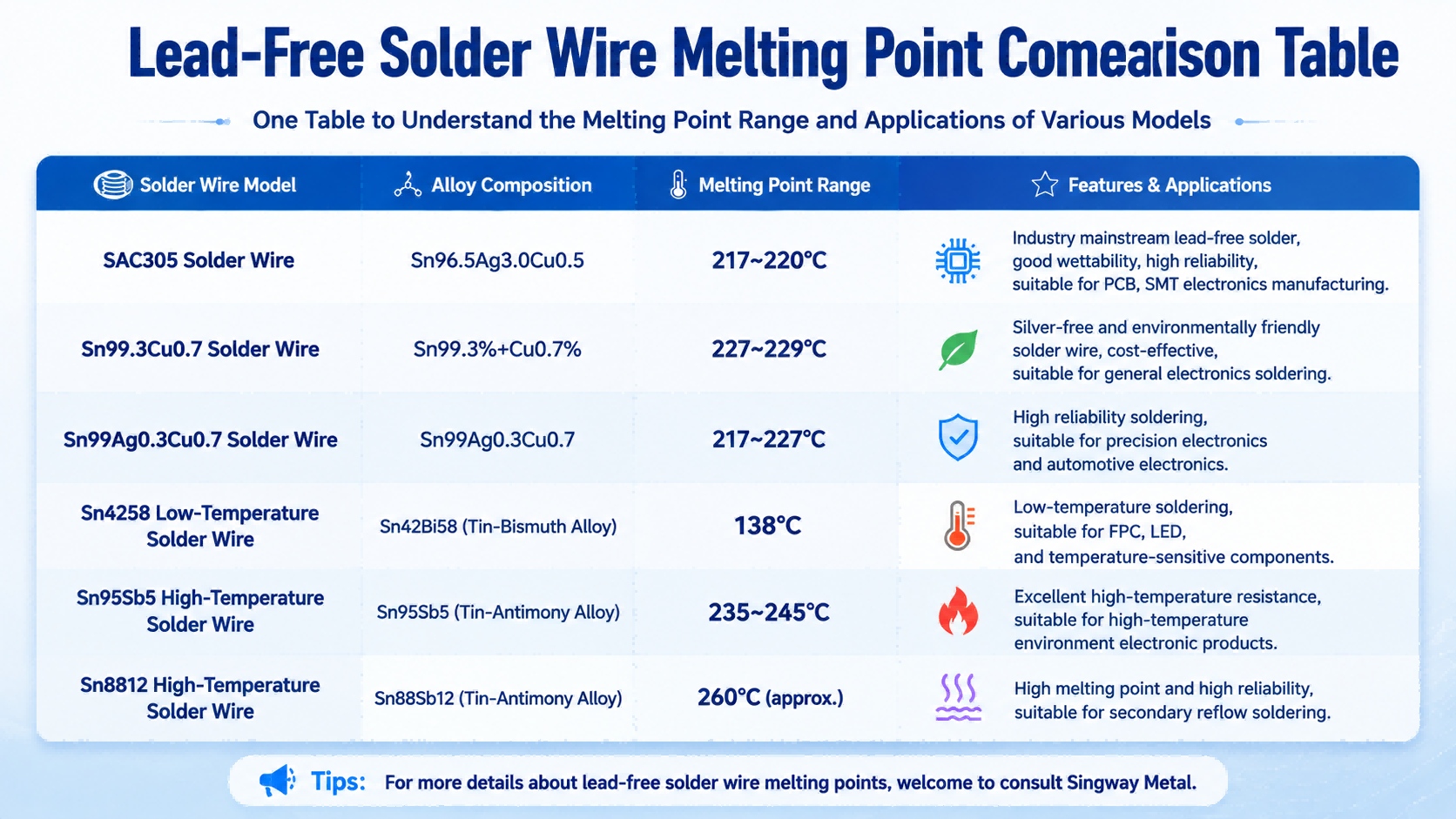

As shown in the table above, lead-free solder wires with different compositions have varying melting points. Thus, all lead-free solder wires cannot be evaluated using a single temperature standard. Currently, lead-free solder wires commonly used in the electronics manufacturing industry include tin-copper, tin-silver-copper, tin-bismuth, and certain special high-temperature alloys—each corresponding to distinct melting temperatures. However, it is important to note that the melting point does not equal the actual soldering iron setting temperature. In practical soldering operations, factors such as PCB copper foil heat dissipation rate, pad area, component thermal capacity, solder wire diameter, flux activity, and equipment speed must be considered. Therefore, the soldering iron temperature should not simply be set directly to the solder’s melting point. Typically, the actual soldering temperature needs to be higher than the melting point due to significant heat loss during real-world soldering, including heat transfer from the soldering tip to the pad, heat dissipation through the PCB copper layer, heat absorption by component leads, differences in pad size, and variations in soldering speed.

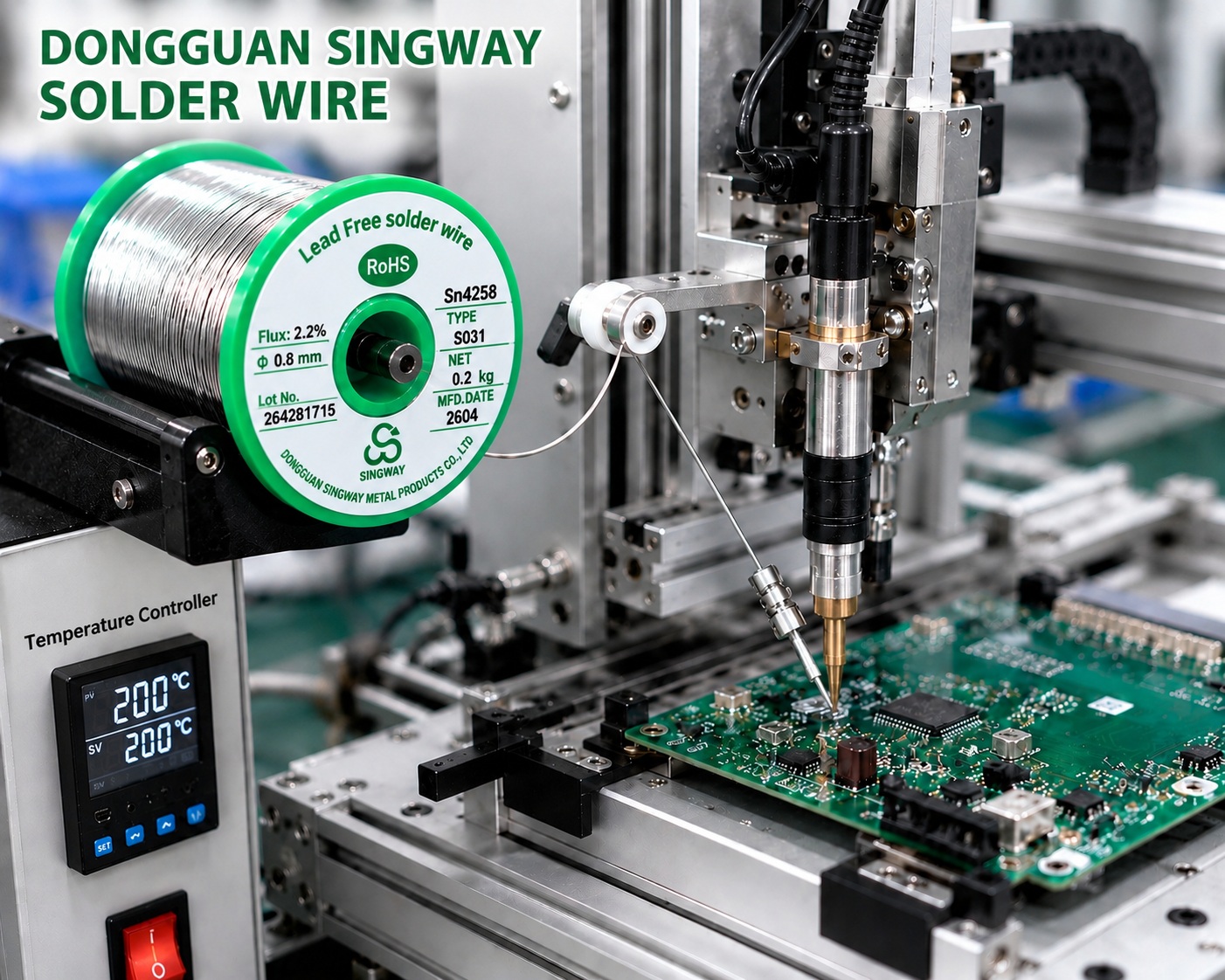

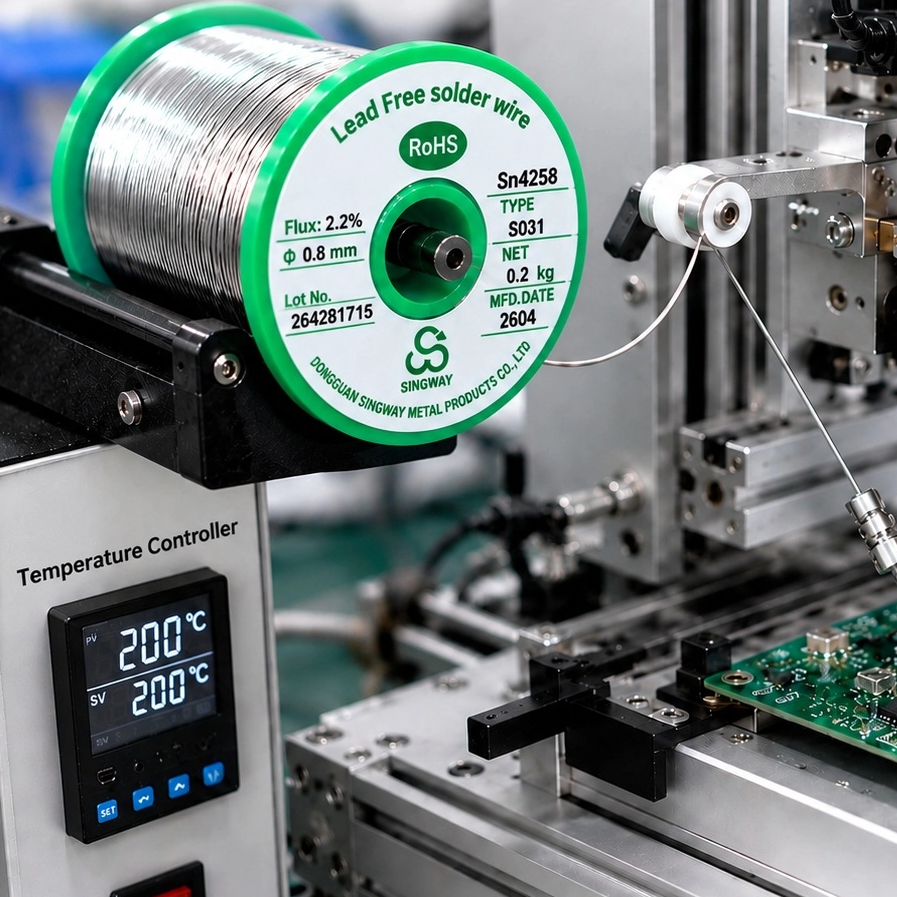

In most cases, common solder wires with melting points between 217°C and 227°C can achieve rapid wetting at an actual soldering iron temperature of around 300°C, offering strong continuous soldering performance, fast wetting, and full, bright joints. For temperature-sensitive applications, one may consider Sn42Bi58 low-melting-point lead-free solder wire with a melting point of approximately 138°C, which enables reliable soldering at just 200°C. If the process involves secondary reflow at high temperatures, a suitable high-temperature alloy must be selected, requiring a soldering temperature of about 380°C. Dongguan Xingwei offers customized lead-free solder wire solutions tailored to diverse electronic soldering requirements, providing various alloy compositions, wire diameters, and performance specifications. When purchasing, we recommend specifying the actual product, joint size, equipment type, desired soldering temperature, and environmental standards so that the appropriate solder wire grade can be matched precisely to avoid issues such as poor wetting, defective joints, spattering, or low soldering efficiency.
