Temperature Control Tips for Soldering with Tin Wire (Soldering Iron)

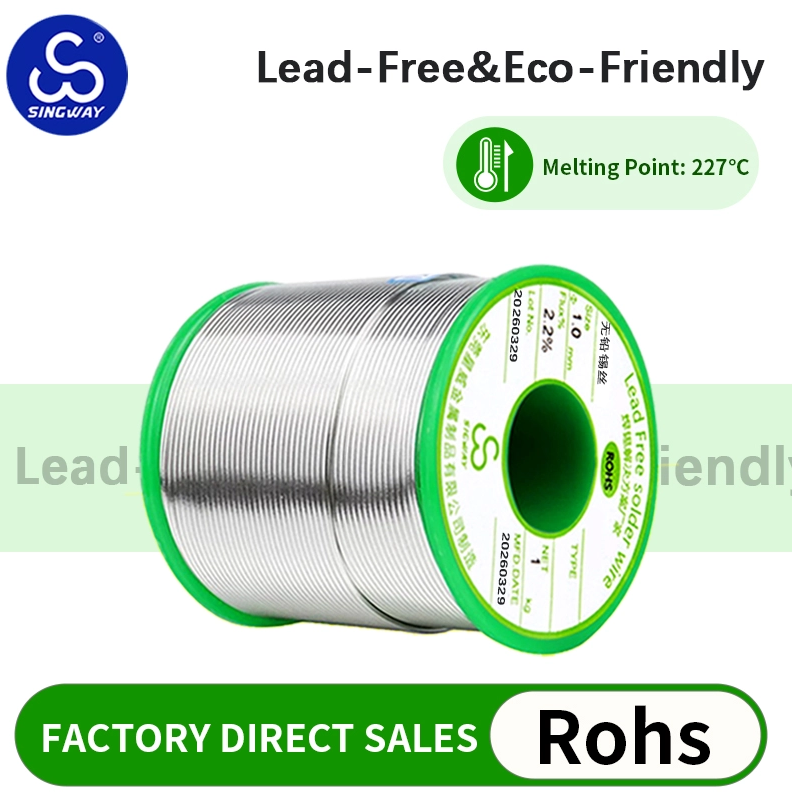

Soldering Iron and Solder Wire

In the process of soldering with a soldering iron, the soldering temperature has a very important impact on the solder wire. The melting point of lead-free solder wire is typically between 227°C and 230°C, while ordinary tin-lead alloy solder wire usually melts between 183°C and 210°C. For soldering equipment such as soldering irons or automatic soldering machines, if the temperature is too high or too low during use, it will affect the reliability of the solder joint.

If the soldering temperature is too low, the solder will not flow smoothly, leading to bridging, cold joints, dull and grainy joint surfaces, and even detachment with slight vibration. If the temperature is too high, the flux will instantly volatilize and burn, causing solder splashing, rapid oxidation and blackening of the soldering iron tip, and even damage to PCB pads and sensitive components. Therefore, it is crucial to properly control the soldering temperature.

After electronic manufacturers purchase solder wire, mastering the correct temperature control techniques for soldering iron and solder wire becomes a必修 course for every manual soldering operator. The correct soldering temperature not only ensures that the solder wire fully wets the pads and component leads, forming smooth, full, and conductive solder joints, but also effectively protects the soldering iron tip, extends the life of consumables, and avoids high-temperature damage to heat-sensitive components. Whether you are a maintenance engineer, electronics enthusiast, or production line worker, precise temperature control largely determines the safety and reliability of solder joints—this is especially critical when using lead-free solder wire, as lead-free alloys have higher melting points and narrower temperature windows.

So, how should the temperature of the soldering iron be set for solder wire? First, a general principle: lead-free solder: 350°C–380°C, leaded solder: 280°C–320°C. For specific types of solder wire used with soldering irons, fine-tuning is required based on alloy composition and wire diameter. For example, the common Sn63/Pb37 eutectic leaded solder wire has a melting point of about 183°C, and setting the soldering iron temperature to around 300°C allows smooth soldering. For Sn99.3/Cu0.7 lead-free solder wire (melting point ~227°C), the temperature needs to be raised to 360°C–380°C. For silver-containing lead-free solder wire (e.g., Sn96.5/Ag3.0/Cu0.5), the addition of silver improves wettability, so the temperature can be slightly lower, around 350°C–370°C. In addition, the thickness of the solder wire also affects temperature selection: fine solder wire below 0.6mm is suitable for SMD components, and the temperature can be slightly lower; thick solder wire above 1.0mm is used for large solder joints or ground pads, and the temperature can be increased by 20°C–30°C. As a precaution, avoid working at high temperatures above 400°C for long periods, as this will not only make the solder joints yellow and brittle but also completely失效 the flux inside the manual soldering wire. At the same time, follow the principle of “preheat first, then feed the wire”—use the soldering iron tip to heat both the pad and the pin for about 1 second before feeding the solder wire, maximizing temperature control effectiveness.

Temperature adjustment and control techniques for soldering wire: First, understand that the temperature control for soldering iron and solder wire does not need to be precisely fixed. Understand the physical characteristics of the purchased solder wire product, but there are clear patterns to follow: lower for leaded, higher for lead-free; slightly lower for fine wire, slightly higher for thick wire; precise control for small joints, appropriate compensation for large joints. If the temperature is wrong, even the best solder wire won’t produce good solder joints. Secondly, even for different alloy solder wires or different diameters of lead-free solder wire, you can extract key indicators from the technical data provided by the solder wire manufacturer. Finally, choosing the right type of solder wire is very important. The correct solder wire model can produce bright, full, firm, and reliable solder joints. Singway Metal is committed to providing overall soldering solutions. If you have questions about bridging, solder splashing, or temperature control, please feel free to consult Singway Metal!
